SYH Three-dimensional Movement Mixer

Overview

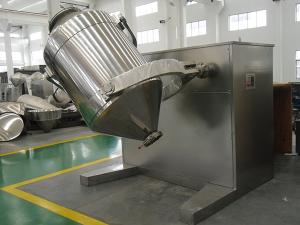

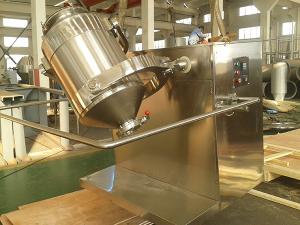

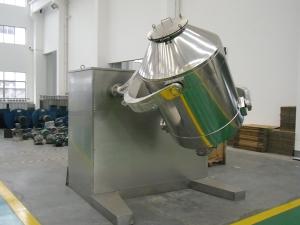

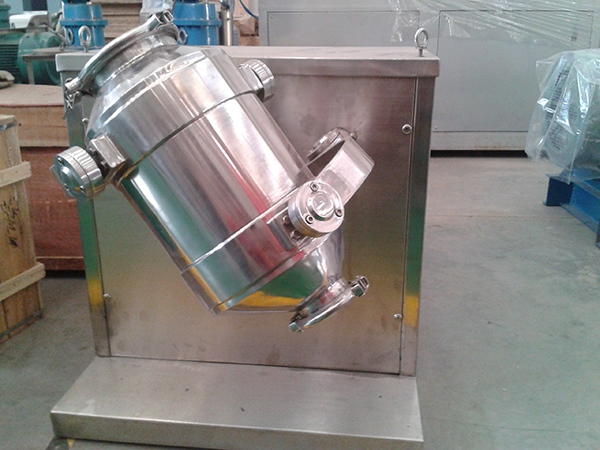

The material drum of our SYH three-dimensional movement mixer is installed at ends of driving and driven shafts in suspended way via two Y-type universal joints. The two joints are mutually and spatially cross and perpendicular.

When the driving shaft rotates, the drum will be in translational and rotational motions under the action of universal joints. Hence, the materials inside the drum are in three-dimensional compound motions (in axial, radial and toroidal directions).

Features
1. In virtue of high efficiency, this three-dimensional movement mixer is widely applied to food, electronics, machinery, mining, metallurgy, pharmaceutical, chemical engineering, national defense and scientific research fields. By using it, powdery and granular materials can be uniformly mixed.
2. Our three-dimensional movement mixer won’t generate centrifugal force, gravity segregation, delamination or agglomeration. Material mixing ratio is up to over 99.9%.
3. Charging coefficient of this three-dimensional movement mixer is higher, reaching 80%. Yet, it is only about 40% for common machines. Besides, mixing time is extremely short. Thus, this 3D mixer is the best choice on the current market.
4. Material drum adopts circular arc design for transition and also is treated with precision polish, totally conforming to requirements of GMP (Good Manufacturing Practice).
5. The entire three-dimensional movement mixer is fabricated with compact structure and stepless speed regulation system (frequency variable or electromagnetic speed control), easy for operation.

Technical Parameters
Item SYH-15 SYH-50 SYH-100 SYH-200 SYH-400 SYH-600 SYH-800 SYH-1000 SYH-1200 SYH-1500
Hopper capacity (L) 15 50 100 200 400 600 800 1000 1200 1500
Max. charging capacity (L) 12 40 80 160 320 480 640 800 960 1200
Max. charging weight (kg) 6 20 40 80 160 240 320 400 480 600
Spindle speed (r/min.) 0-28 0-8
Motor power (KW) 0.37 1.1 1.5 2.2 4 5.5 7.5 7.5 11 11
Overall dimension (mm) L 750 1400 1700 1800 2100 2400 2600 2650 2950 3100
W1 1000 1000 1200 1400 1800 2200 2380 2500 2650 2850
H 700 1200 1500 1600 1950 2350 2500 2600 2750 3000
W2 650 850 1250 1350 1650 1750 2000 2100 2200 2250
Weight (kg) 200 300 500 800 1200 1500 2000 2500 3000 3500
