FZG

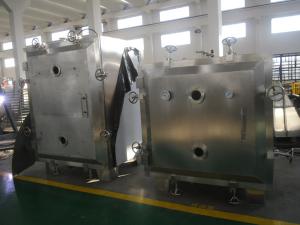

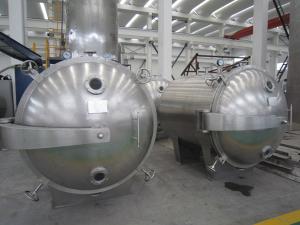

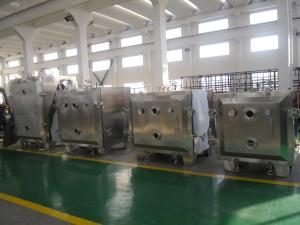

Vacuum Dryer

Overview
The FZG vacuum dryer boasts strong drying capability even under low operating temperature. Generally, pure water boils at 100°C in normal state. Yet, the boiling point of water inside this vacuum drying machine is below 100°C for the partial pressure of steam is much less than the partial pressure materials receive. For example, when the partial pressure of material surface is -0.07MPa, water boils at 70°C.

Features
1. Featured by high drying efficiency and high heat utilization rate, this vacuum drying equipment fits for drying heat sensitive and easily-oxidized materials.
2. Our vacuum dryer is also applicable for solvents or solvents requiring reclamation.
3. Sterilization is implemented before drying, and impurities won’t be mixed with materials during drying.
4. This static vacuum dryer won’t cause material morphology damage. Meanwhile, as a kind of batch production equipment, it enables timely craft adjustment.
5. Arched internal top is helpful in avoiding the generation of condensed water droplet.
6. Four-point-in-one vacuum structure largely guarantees drying uniformity.

Technical Parameters
Item YZG-600 YZG-800 YZG-1000 YZG-1400 FZG-10 FZG-15 FZG-20
Inner size for drying (mm) φ600×976 φ800×1247 φ1000×1527 φ1400×2054 1500×1060×1220 1500×1400×1220 1500×1800×1220
Outer size for drying (mm) 1135×810
×1020		 1700×1045
×1335		 1693×1190
×1500		 2386×1657
×1920		 1924×1720
×1513		 1513×1924
×2060		 1924×2500
×1513

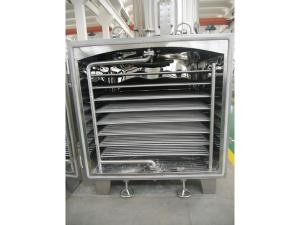

Baking shelf layer number 4 4 6 8 5 8 12
Distance between layers (mm) 81 82 102 102 122 122 122
Baking tray size (mm) 310×600×45 520×410×45 520×410×45 460×640×45 460×640×45 460×640×45 460×640×45
Baking tray number 4 8 12 32 20 32 48
Pressure inside baking shelf tube (MPa) ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784 ≤0.784
Temperature inside baking shelf (°C) 35-150 35-150 35-150 35-150 35-150 35-150 35-150
No-load vacuum degree (MPa) -0.1 -0.1 -0.1 -0.1 -0.1 -0.1 -0.1
Gasification rate of water (kg/m2.hr) (-0.1MPa, 110°C) 7.2 7.2 7.2 7.2 7.2 7.2 7.2
Vacuum pump model and power (when condenser is used) (KW) 2x-15A2KW 2x-30A3KW 2x-15A3KW 2x-70A5.5KW 2x-70A5.5KW 2x-70A5.5KW 2x-90A7.5KW
Vacuum pump model and power (when condenser is not used) (KW) SZ-0.51.5KW SZ-12.2KW SZ-12.2KW SZ-25.5KW SZ-24KW SZ-25.5KW SZ-25.5KW
Weight (kg) 250 600 800 1400 1400 2100 3200
Note: The above parameters are subject to actual conditions.
