CT

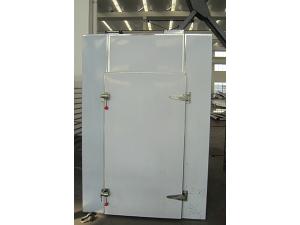

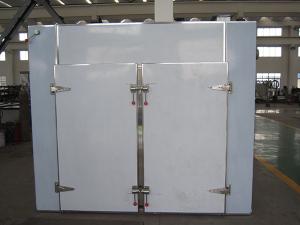

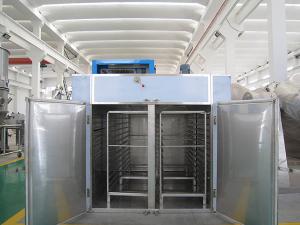

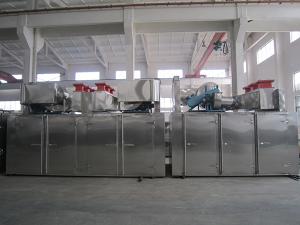

Tray Dryer

Application
The CT tray dryer enables material heating, solidifying, drying and dehydrating in pharmaceutical, food, chemical engineering, agricultural and sideline product, aquatic product as well as light and heavy industries.

Generally, this universal hot-air dryer can help to produce the BPC (bulk pharmaceutical chemical), traditional Chinese medicine, Chinese herbal piece, extract, powder, granule, dissolved medicine, water-bindered pill, package bottle, dyestuff, dehydrated vegetable, dried fruit, sausage, plastic resin, electrical element, baking finish, etc.

Features
1. Hot air circulation inside the tray dryer is conductive to energy saving and heat efficiency improving.
2. Taking advantage of forced ventilation principle, adjustable wind distribution plate is installed inside the machine to ensure uniform drying. Wide range of heat source is available for this tray dryer, including steam, hot water, electricity, far-infrared, etc.
3. With small noise and automatic temperature controller, this hot airflow dryer runs stably, easy for installation and maintenance.

Technical Parameters
Industry standard model Item Drying capacity Power Steam consumption Heat dissipation area Air volume Temperature difference Baking tray Overall dimension Baking trolley Weight
Specification (kg) (KW) (kg/h) (m2) (m3/h) (°C) L × W × H
RXH-14-B CT-Ⅰ 120 1.1 20 23 3450 ±2 48 2430×1200×2375 2 1220
RXH-27-B CT-Ⅱ 240 1.5 40 48 5230 ±2 96 2480×2200×2438 4 1530
RXH-41-B CT-Ⅲ 360 2.2 60 72 9800 ±2 144 3430×2200×2620 6 2110
RXH-54-B CT-Ⅳ 480 3 80 96 11800 ±2 192 4460×2200×2620 8 2300
RXH-5-C CT-C-IA 25 0.45 5 5 3450 ±2 16 1130×1100×1750 0 800
RXH-7-C CT-C-O 60 0.45 10 10 3450 ±2 24 1380×1200×2000 1 1000
RXH-14-C CT-C-Ⅰ 120 0.45 18 20 3450 ±2 48 2260×1200×2000 2 1580
RXH-27-C CT-C-Ⅱ 240 0.9 36 40 6900 ±2 96 2260×2200×2000 4 1800
RXH-27A-C CT-C-Ⅱ A 240 0.9 36 40 6900 ±2 96 4280×1200×2270 4 1880
RXH-41-C CT-C-Ⅲ 360 1.35 60 80 10350 ±2 144 2260×3200×2000 6 2100
RXH-41A-C CT-C-Ⅲ A 360 1.35 60 80 10350 ±2 144 3240×2200×2000 6 2210
RXH-54-C CT-C-Ⅳ 480 1.8 80 120 13800 ±2 192 4280×2200×2270 8 2800
RXH-25-A This product enables high-efficiency high-temperature far infrared sterilization, the applicable power of which is determined by required working temperature. 1200×1000×1600 1 1200
