Home » Products » Drying Equipment » QG Flash Dryer
QG

Flash Dryer

Overview

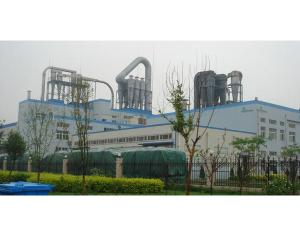

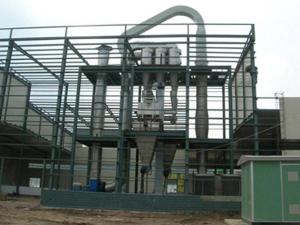

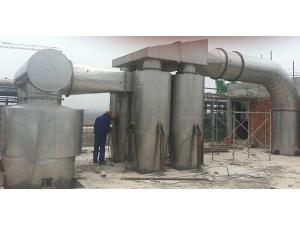

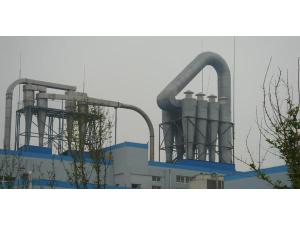

Water wet materials enter the QG flash dryer via special feedway, and then are fully mixed with heated air. As heat and mass transfer area is increased, material moisture will evaporate within a very short time. Dried final products will then be discharged by cyclone separator, and a fraction of fine powder will be collected by cyclone dust extractor or bag-type dust collector.

Features
1. This flash dryer adopts impulse-type clamp, allowing for full contact of materials and hot air. Hence, thermal efficiency is extremely high.
2. Suited to heat sensitive materials, our flash dryer features small system resistance, favorable operating environment and low labor intensity.
3. Due to high gas speed at main engine bottom, contact time for materials and hot air is short, which safely avoids material coking and discoloring.
4. The driving unit of this hot airflow dryer is simply constructed, thereby maintenance load is small.

Technical Parameters
Model Evaporation capacity (kg/h) Installed power (KW) Floor area (m2) Height (m)
Q50 50 6.25 (8.25) 20 9
QG50 50 6.25 (8.25) 20 9
JG50 50 9.25 (11.25) 20 9
Q100 100 8.6 (11.6) 32 11
QG100 100 8.6 (11.6) 32 11
JG100 100 16.1 (19.1) 32 11
Q250 250 20 (27.5) 64 16
QG250 250 20 (27.5) 64 16
JG250 250 31 (38.5) 64 16
Q500 500 33 (48) 96 16
QG500 500 33 (48) 96 16
JG500 500 48 (58) 96 16
Q1000 1000 63 (78) 120 16
QG1000 1000 63 (78) 120 16
JG1000 1000 78 (98) 120 16

Note:
1. The power value inside bracket refers to the installed power of bag-type dust collector.
2. The above parameters are for reference only. Drying intensity is determined by material characteristic, operating temperature and other factors.
