Application

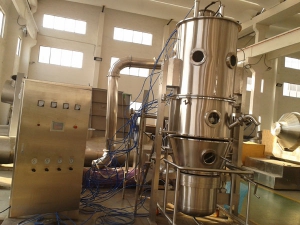

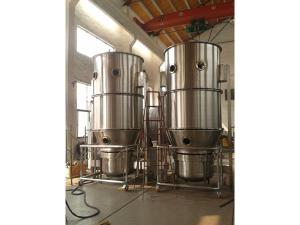

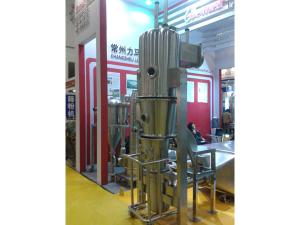

The FG fluid bed dryer is well fit for medicine, food, pesticide, chemical engineering and many other industries for powdery or granular material drying.
Features
1. Adopting fluidized drying mode, this machine features fast heat and mass transfer speed as well as large fluidization space.
2. This fluidized bed dryer is designed with closed negative-pressure working environment, thus dust explosion is effectively avoided.
3. Multi-pocket filtration and anti-static filtering material are used to ensure operation safety.
4. There is no dead space, and cleaning is extremely convenient.
5. Our fluid bed dryer can be configured with agitating mechanism according to special requirement.
6. Optional configurations for this fluid-bed dryer include negative-pressure feeding system and PLC.
| Item | Unit | Model and parameter value | |||||||||
| 3 | 5 | 30 | 60 | 120 | 200 | 300 | 500 | ||||
| Material vessel | Diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| Volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | ||
| Production capacity | Min. | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 | |
| Max. | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | ||
| Steam consumption | kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | ||
| Compressed air volume | m3/min. | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 1.1 | 1.6 | ||
| Fan power | KW | 2.2 | 2.2 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | ||
| Temperature | °C | Normal temperature to 120°C (automatic adjustment) | |||||||||
| Material collection | % | ＞99 | |||||||||
| Moisture content of final product | % | ≤0.2 | |||||||||
| Noise | dB (A) | ≤75 | |||||||||
| Height | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4400 | ||
